  • Technical Features

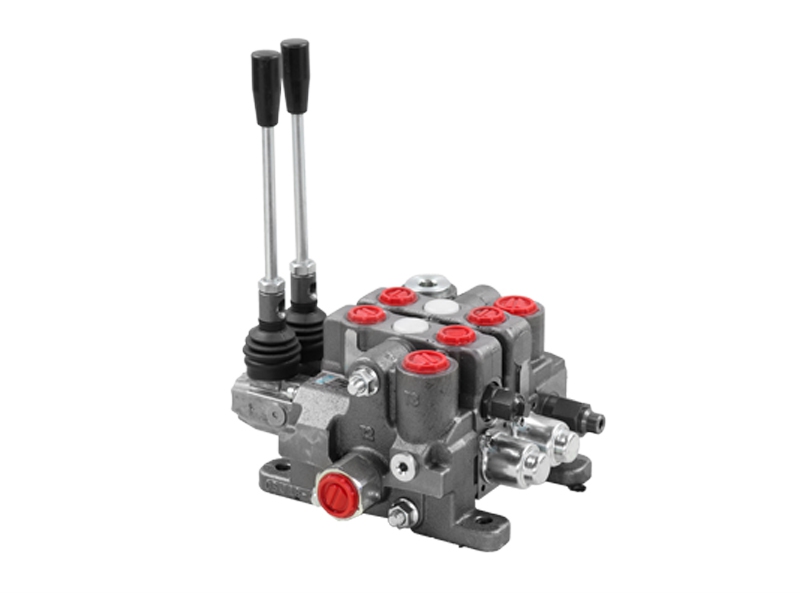

           CNC S-17 is a compact, flexible and robust control valve for operating pressures up to 350 bar and flows up to 90 lpm.

           The valve is designed for high performance for open and closed centre hydraulic systems.

           ACCESSORIES

  • Valve is equipped with an adjustable main relief valve.
  • Avaliable in parallel (in standard), series, tandem circuit.
  • Load Hold Check valves in each section.
  • Auxiliary Valves.
  • Wide range of spool options.
  • Interchangable  Ø16 mm spools.
  • Carry-over and closed center option.
  • Load Sense Option.



           CONTROLS

           Manuel, Pneumatic, Electro-Pneumatic, Hydraulic, Electro-Hydraulic, Inlet Proportional, Electro-Hydraulic Proportional, Mechanical Joystick and Remote Cable Control.
